The Advanced Control of WEG Electric’s CFW900 High-Performance Drive Family is now available in higher HP Sizes!
The Advanced Control of WEG Electric’s CFW900 High-Performance Drive Family is now available in higher HP Sizes!

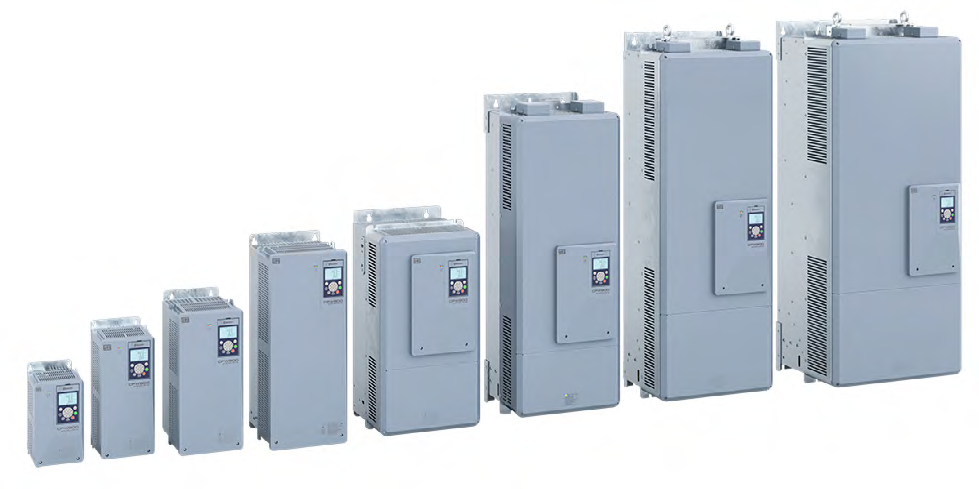

WEG Electric is announcing the launch of New higher horsepower rated units, with new available options, for our CFW900 Family of Drives. CFW900 drives deliver the high-performance that meet the demands of industrial and commercial applications.
The CFW900 is a state-of-the-art Variable Frequency Drive (VFD) that sets a new standard in high-tech motor control and protection.
Key Features at a Glance:
- New Extended HP range of Product: Select from up to 150HP-370A @ 3/230VAC & 650HP-760A @ 3/460VAC, Normal Duty / Variable Torque
- New Extended HP range of Product: Select from up to 125HP-315A @ 3/230VAC & 500HP-601A @ 3/460VAC, Heavy Duty / Constant Torque

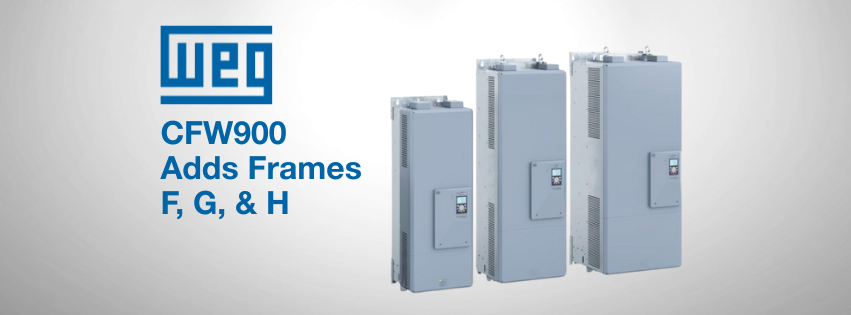

- New Ventilation Air Duct Kits available to exhaust the control panel heat outside the panel for enhanced thermal management (For Frame Sizes : E,F,G & H)
- High-temperature ambient operations: Utilizing built-in intelligent thermal management, the CFW900 thrives in challenging environments with a rating of up to 50°C ambient temperature without derating
- PWM Modulation for Long Cables: A specific PWM modulation function allows operation with long cables (up to 200m) without an output filter
- Functional Safety Features: Meets SIL3 & Ple/Category 4 requirements with built-in Safe Torque Off (STO) and Safe Stop (SS1-t) functions
- Integrated Ethernet Communication: Seamless connectivity with dual Ethernet ports and RS485 (Modbus RTU) port
- Cell phone APP “WEG WPS”, real-time clock with event log, copy function, oriented start-up, and on-line help
- Built-In RFI filter: Reduce Electromagnetic interference with an integrated RFI filter
- Intuitive Control Interface: Modern Text/Graphic Keypad with Bluetooth, USB port, RTC & help function; displays up to 27 parameters
- Embedded IoT Connectivity: Embrace the future with IoT-ready capabilities using MQTT protocol, enabling remote access for proactive maintenance and enhanced overall process efficiency
- Advanced SoftPLC: Enjoy built-in PLC functionalities for enhanced control with WEG’s free WEG Programming Software (WPS) software
- Harmonic Reduction: Built-in Dual DC bus chokes minimize harmonics, ensuring cleaner power for your operations
- Expandable Options: 4 independent slots, expandable to 7, accommodate plug-and-play I/O expansion & communication modules
- Versatile Built-in I/O: 6 x Digital Inputs, 2 x Digital outputs, 3 x Relay outputs, 2 x Analog Inputs, and 2 x Analog outputs provide flexibility for various applications
Explore More:
For detailed information, check out our CFW900 Brochure, CFW900 Flyer, and new LV Drive and soft stater Interactive Catalog, which includes comprehensive details about the CFW900.
Ready for Action:
These new CFW900 drives are now in stock and ready to revolutionize the way you control and protect your motors.
How to Get Yours:
You may follow any of the convenient ordering options that you use every day to order WEG products, including ordering directly through WEG Easy Or contact us today at 1-800-ASK-4WEG. Our team will assist you with any inquiries, application assistance, or selection guidance for the CFW900 VFD or any other Automation product. With WEG, you can be assured of a worry-free process and the utmost satisfaction.
